Using Kali Linux on Cloud was a requirement by our internal Security team, to use Kali Linux VM and its inbuilt tools on one of their tenant. As a standard cloud practice we provided our customers with non gui based images of Ubuntu, CentOS, Oracle Linux. Security team had specificly requested for a GUI bootable Kali Linux image on our Openstack Cloud. The below approch was taken to provision Kali Linux image on cloud.

Download a Kali Linux ISO on cloud baremetal node from https://www.kali.org/downloads/
Create a temporary VM on a cloud baremetal node

Create a disk image for the VM

qemu-img create -f qcow2 /var/lib/libvirt/images/kalilinux.qcow2 20G

Create a VM using the disk image

virt-install --name kalilinux --vcpus=1 --ram 2048 --disk path=/var/lib/libvirt/images/kalilinux.qcow2,bus=virtio,cache=writeback --boot network --graphics vnc,listen=0.0.0.0 --network bridge:br1012,model=virtio

Connecting to virt-manager on the cloud baremetal node

I use xming along with putty on my local machine, X11 forwarding is enabled in putty to forward to localhost:0

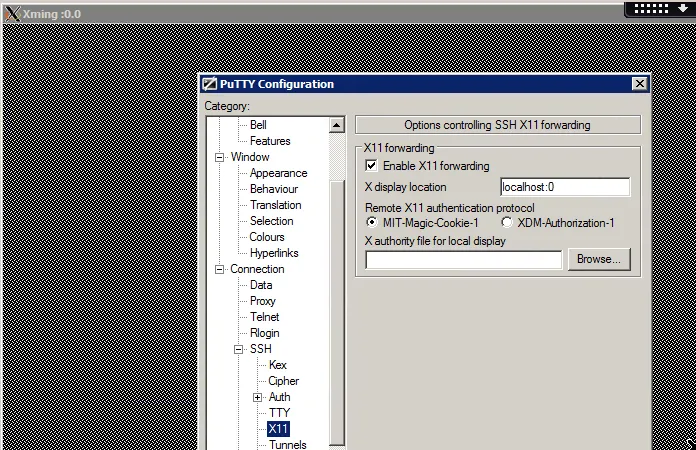

1-kalilinux-kvm-xming

start xming on your local machine

login to the remote server using putty, set X11 forwarding to localhost:0

Start virt-manager on baremetal node in background.

virt-manager&

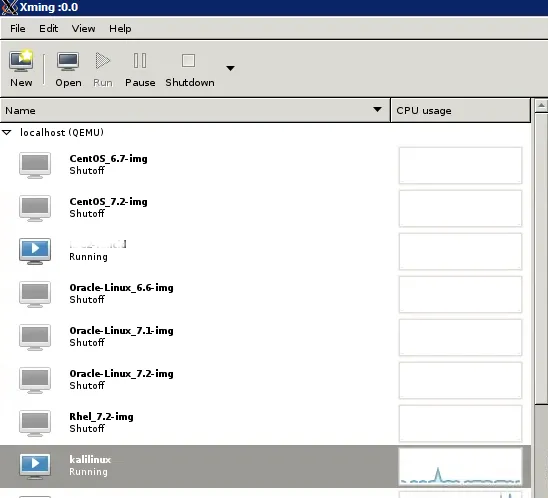

2-xming-connect

Attach a cdrom device to VM in virt-manager & mount the kalilinux.iso
Start the VM These steps can also be done using virsh command, but I prefer the virt-manager/GUI method from start as I need to enable GUI on the kali linux VM image being prepared.
Open the KVM console to access Kali Linux VM & proceed through the installation steps.
Booting Kali Linux

Once Kali Linux is booted, I came across a issue where the VM was not booting in the GUI mode.

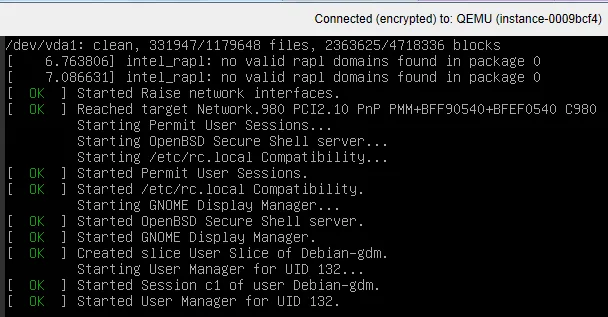

3-kali-gui-stuck

Aftre some troubleshooting and investigating the issue, I came across a solution which pointed towards the default display manager - gdm3 used in Kali Linux. This need to be replaced with lightdm. Below is the procedure followed.

Configure network manually

ifconfig
ifconfig eth0 inet 10.190.163.238/24
route add default gw 10.190.163.1
telnet proxy.mycloud.com 8678
wget google.com

Set the APT repository for Kali

root@kali-test-16jan:~# cat /etc/apt/sources.list
deb http://http.kali.org/kali kali-rolling main contrib non-free
apt-get uppubDate:

Remove default gdm3 as Kali GUI will not be displayed in Openstack Dashboard Console

apt-get remove gdm3
(Reading database ... 306509 files and directories currently installed.)
Removing kali-desktop-gnome (2017.1.0) ...
Removing gnome-core (1:3.20+1) ...
Removing gdm3 (3.22.1-1) ...
Processing triggers for man-db (2.7.6.1-2) ...
Processing triggers for hicolor-icon-theme (0.15-1) ...

root@kali:~# dpkg -l | grep gdm3
rc  gdm3                                   3.22.1-1                             amd64        GNOME Display Manager

Install xfce Desktop which will install lightdm

apt-get uppubDate:
apt-get install kali-defaults kali-root-login desktop-base xfce4 xfce4-places-plugin xfce4-goodies

Setting up xorg (1:7.7+18) ...
Setting up libkeybinder-3.0-0:amd64 (0.3.1-1) ...
Setting up lightdm-gtk-greeter (2.0.2-1) ...
uppubDate:-alternatives: using /usr/share/xgreeters/lightdm-gtk-greeter.desktop to provide /usr/share/xgreeters/lightdm-greeter.desktop (lightdm-greeter) in auto mode
Setting up libwnck22:amd64 (2.30.7-5.1) ...
Setting up libvte-2.91-0:amd64 (0.46.1-1) ...
Setting up libxfce4util7:amd64 (4.12.1-3) ...
Setting up lightdm (1.18.3-1) ...
Adding group `lightdm' (GID 142) ...
Done.
Adding system user `lightdm' (UID 135) ...
Adding new user `lightdm' (UID 135) with group `lightdm' ...
Creating home directory `/var/lib/lightdm' ...
usermod: no changes
usermod: no changes
usermod: no changes
Setting up libisofs6:amd64 (1.4.6-1) ...
Setting up libxfce4panel-2.0-4 (4.12.1-2) ...
Setting up xfce4-taskmanager (1.1.0-1) ...
Setting up libxfce4util-bin (4.12.1-3) ...
Setting up light-locker (1.7.0-3) ...
Setting up xfconf (4.12.1-1) ...

Enable GUI on boot for Kali Linux

systemctl set-default graphical.target

Reboot the VM, this will display the GUI on next boot.

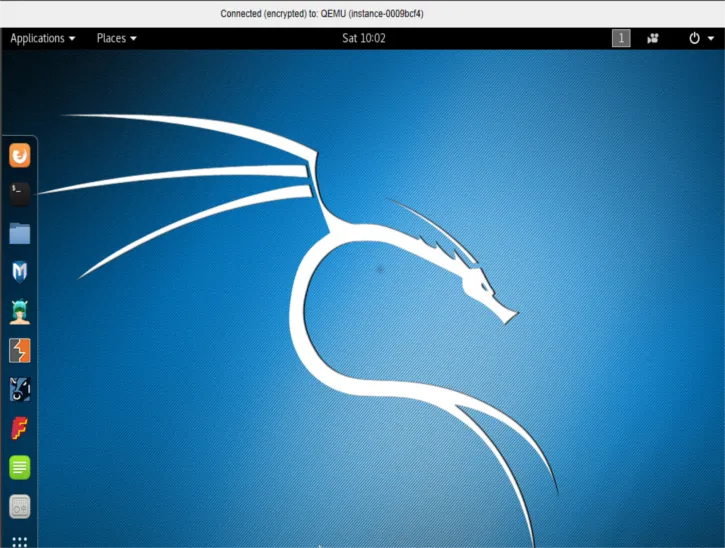

4-kali-gui-working

Next we need prepare the Kali Linux VM for Cloud by enabling ssh & cloud-init

Enable ssh on Kali Linux

vi /etc/ssh/sshd_config
service ssh restart
service ssh status

Install cloud-init

apt-get install cloud-init

Reconfigure cloud-init

vi /etc/cloud/cloud.cfg
dpgk-reconfigure cloud-init
dpkg-reconfigure cloud-init
cloud-init init --local
cloud-init init
cloud-init modules --mode=config
cloud-init modules --mode=final

Cloud-int adds additional entries to sources.list, remove them as apt-get uppubDate: fails

root@kali-test-16jan:~# cat /etc/apt/sources.list
deb http://http.kali.org/kali kali-rolling main contrib non-free

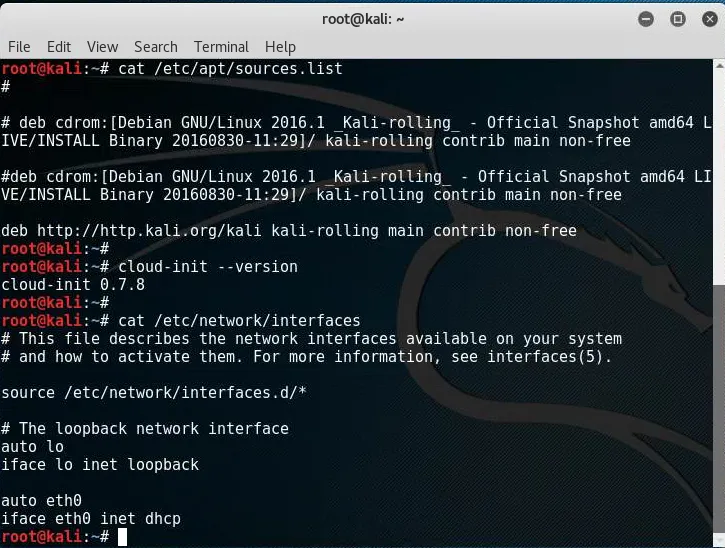

5-kali-linux-prep

Copy the newly created VM image from /var/lib/libvirt/images/kalilinux.qcow2 to cloud controller
Convert image to raw format

qemu-img convert -f qcow2 -O raw kalilinux.qcow2 kalilinux.raw

Upload to openstack glance

glance image-create --name KaliLinux --is-public False --disk-format raw --container-format bare --file /tmp/kalilinux.raw
